Parking Brake Inspection and Adjustment: Inspection

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the parking brake lever (A) with 196 N (20 kgf, 44 lbf) of force to fully apply the parking brake. The parking brake lever should be locked within the specified number of clicks.

    Lever locked clicks: 5 to 7

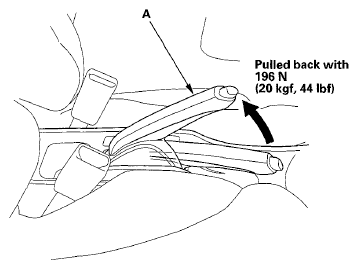

    Fig 1: Pulling Parking Brake Lever With Torque Specifications
    G05959175Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. If the number of lever clicks is not as specified, adjust the parking brake.
