Pedal Height

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
Turn the brake pedal position switch (A) counterclockwise 45°, and pull it back until it is no longer touching the brake pedal.

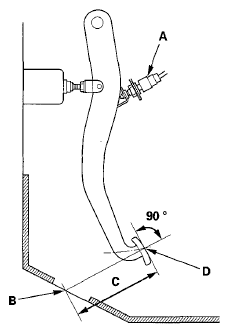

Fig 1: Measuring Pedal Height Center Of Pedal Pad
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull back the carpet and find the cutout (B) in the insulation. Measure the pedal height (C) at the center of the pedal pad (D) to the floor without the insulation.
Standard pedal height (with carpet moved):

M/T: 132 mm (5.2 in.)

A/T: 147 mm (5.8 in.)

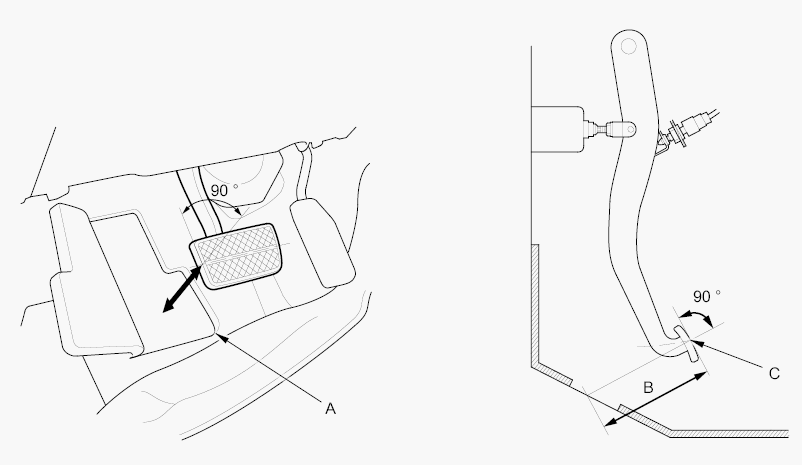

Fig 2: Identifying Pedal Angle
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Loosen the pushrod locknut (A), and screw the pushrod (B) in or out with pliers until the standard pedal height from the floor is reached. After adjustment, tighten the locknut firmly. Do not adjust the pedal height with the pushrod pressed.

Fig 3: Pushrod Locknut & Screw Pushrod With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Brake Pedal Position Switch Adjustment

Lift up on the brake pedal by land. Push in the brake pedal position switch until its plunger is fully pressed (threaded end (A) touching the pad (B) on the pedal arm). Turn the switch 45° clockwise to lock it. The gap between the brake pedal position switch and the pad is automatically adjusted to 0.7 mm (0.028 in.) by locking the switch. Make sure the brake lights go off when tie pedal is released.

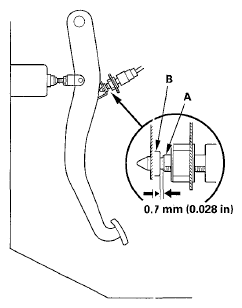

Fig 4: Identifying Brake Pedal Position Switch Clearance
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install all the removed parts in the reverse order of removal.
Check the brake pedal free play.
