Hazard Warning Switch Test/Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Remove the audio panel.
- With navigation unit (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION )
- Without navigation unit (see AUDIO UNIT REMOVAL/INSTALLATION )
Remove the two screws and the hazard warning switch (A).

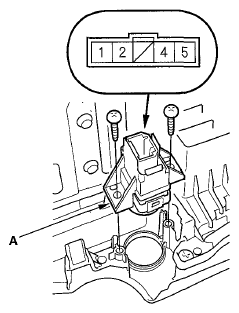

Fig 1: Identifying Hazard Warning Switch & Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table below.

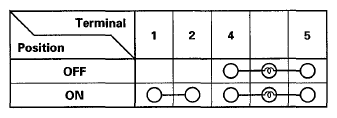

Fig 2: Identifying Switch Position Continuity Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch (A) or bulb (B).

Fig 3: Identifying Switch & Bulb
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the switch in the reverse order of removal.
