Rear Door

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left or right rear door panel (see REAR DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 10P connector (A) from the actuator (B).
    NOTE: The graphic shows the left rear door.

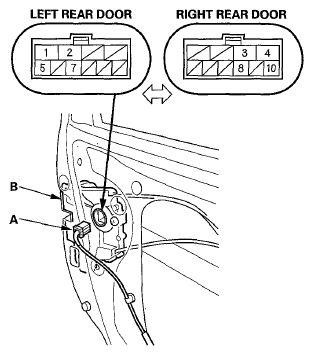

    Fig 1: Identifying Actuator 10P Connector Terminals - Rear Door
    G05959969Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals. There should be continuity between terminals No. 7 [No. 8] and No. 5 [No. 10] when the door lock knob switch is UNLOCK position and no continuity when the switch is in the LOCK position.

    [] : Right rear door

  4. If the continuity is not as specified, replace the door lock actuator.
