Front Passenger's Door

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the passenger's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 10P connector (A) from the actuator (B).

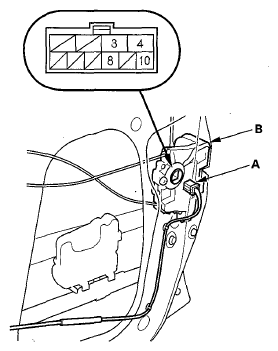

    Fig 1: Identifying Actuator 10P Connector Terminals - Front Passenger's Door
    G05959968Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals.

    There should be continuity between terminals No. 8 and No. 10 when the door lock knob switch in the UNLOCK position and no continuity when the switch is in the LOCK position.

  4. If the continuity is not specified, replace the door lock actuator.
