Right Rear Door

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right rear door panel (see REAR DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 10P connector (A) from the actuator (B).

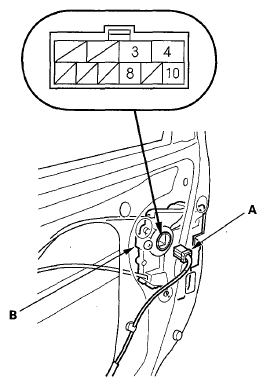

    Fig 1: Identifying Actuator 10P Connector Terminals
    G05959963Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check actuator operation by connecting power and ground according to the table below. To prevent damage to the actuator, apply battery voltage only momentarily.

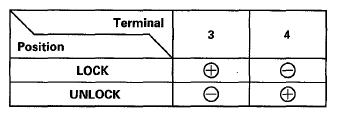

    Fig 2: Identifying Actuator Lock & Unlock Position Table
    G05959964Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the actuator does not operate as specified, replace it.
