Hood Seal Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Take care not to scratch the hood.

Detach the clips with a clip remover, then remove the hood seals (A).

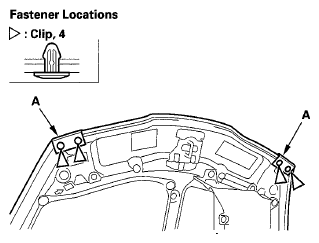

Fig 1: Identifying Hood Seals With 4 Cips
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Some models have 2 seal clips per side and others have 3 clips per side.

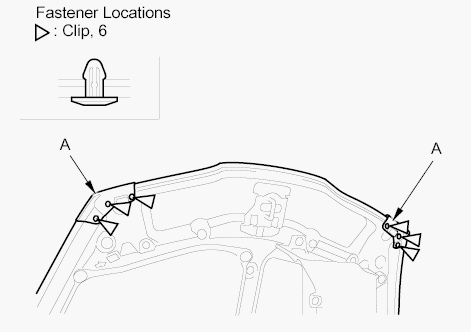

Fig 2: Identifying Hood Seals With 6 Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the seal in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
