Hood Adjustment
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Put on gloves to protect your hands.
- Take care not to scratch the hood, the body, or other related parts.
- Remove the cowl cover (see COWL COVER REPLACEMENT ).

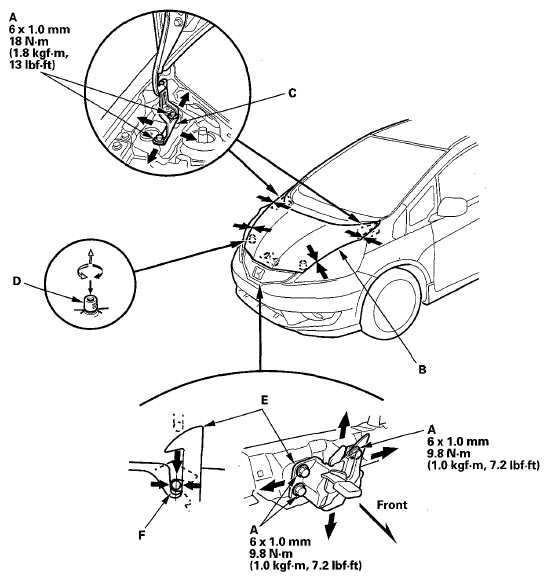

- Slightly loosen each bolt (A).
- Adjust the hood (B) alignment in this sequence:
- Adjust the hood right and left, as well as forward and rearward, by using the elongated holes in the hood hinges (C).
- Turn the hood edge cushions (D), as necessary, to make the hood fit flush with the body at the front and side edges.
- Adjust the hood latch (E) to obtain the proper height at the forward edge, and move the hood latch right or left until the striker (F) is centered in the hood latch.
- Tighten the bolts to the specified torque.
- Check that the hood opens properly and closes securely.
- Apply touch-up paint to the hinge mounting bolts and around the hinges, and let the paint dry.

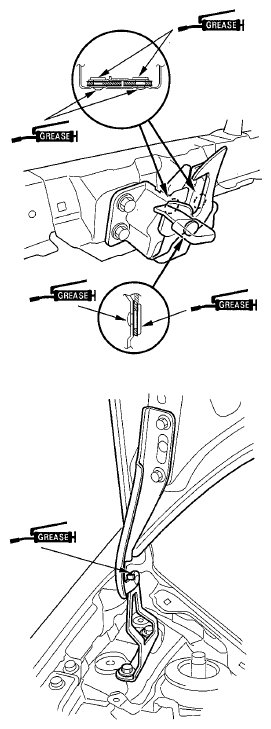

- Apply multipurpose grease to the hood latch and the hood hinges as indicated by the arrows.
- Reinstall all of the removed parts.
