Rear Bumper Air Spoiler Replacement
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Put on gloves to protect your hands.
- Take care not to scratch the rear bumper.
- Remove the rear bumper (see REAR BUMPER REMOVAL/INSTALLATION ).

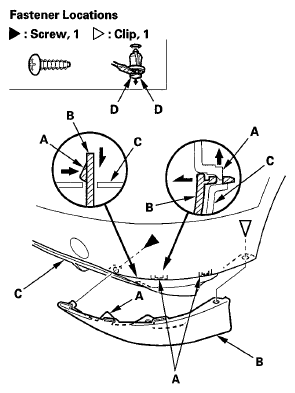

- Remove the screw and the clip, and release the hooks (A), then remove the rear bumper air spoiler (B) from the rear bumper (C). Take care not to scratch the rear bumper.NOTE: To release the clips, pry up on the center pin at the notch (D).
- Install the spoiler in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
