Front Air Spoiler Replacement: Notes

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the front bumper.

Remove the clips securing the air spoiler (A) to the front bumper (B).
NOTE: To release the clips, pry up on the center pin at the notch (C).

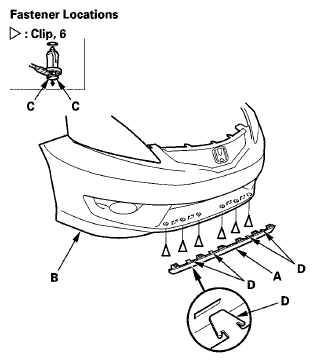

Fig 1: Identifying Air Spoiler, Front Bumper, Clips & Notch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull the front air spoiler back to detach the hooks (D), and remove the spoiler.
Install the spoiler in the reverse order of removal:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
