Rear Seat Belt Buckles and Center Shoulder Seat Belt Detachable Anchor

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Lift both rear seat cushions up.
Pull the rear seat belt buckles (A) and the rear center seat belt detachable anchor (B) out through the elastic straps (C) on the seat cushions.

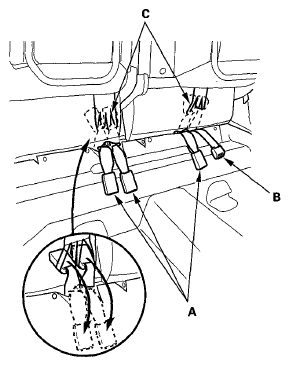

Fig 1: Identifying Rear Seat Belt Buckles, Rear Center Seat Belt Detachable Anchor & Elastic Straps
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Place the seat belt buckles and seat belt detachable anchor on the floor underneath the seat cushions.
Fold both rear seat-backs.
Lift up the cargo floor lids (A), and remove the anchor bolts (B).

Fig 2: Up Cargo Floor Lids & Anchor Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Lift both rear seat cushions up.
Remove the seat belt buckles (A) and the center seat belt detachable anchor (B).

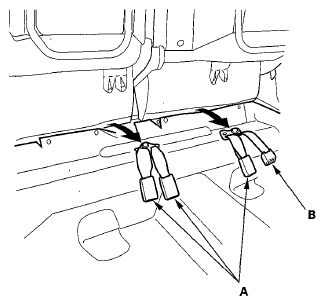

Fig 3: Identifying Seat Belt Buckles & Center Seat Belt Detachable Anchor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the buckles and the anchor in the reverse order of removal, and note these items:
- Tighten the bolts by hand first, then tighten to the specified torque.
- Assemble the washers and the collar on the anchor bolts as shown below.
Left side anchor bolt installation

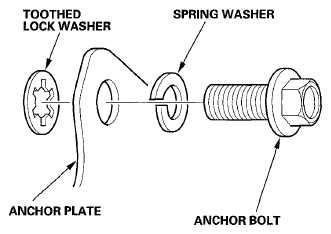

Fig 4: Identifying Left Side Anchor Bolt Installation Positions
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Right side anchor bolt installation

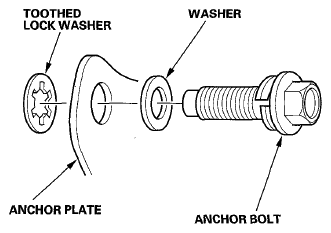

Fig 5: Identifying Right Side Anchor Bolt Installation Positions
Courtesy of AMERICAN HONDA MOTOR CO., INC.
