Rear Center Shoulder Seat Belt

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headliner (see HEADLINER REMOVAL/INSTALLATION ).
  2. Remove the front retractor mounting bolt (A) and the rear retractor bolt (B), then remove the center seat belt and the retractor (C).

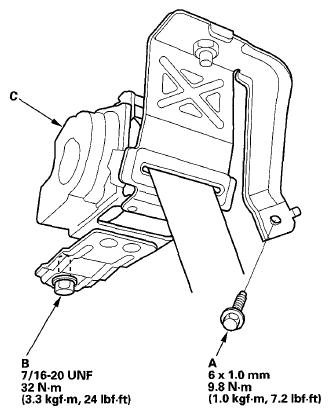

    Fig 1: Front & Rear Retractor Mounting Bolt With Torque Specifications
    G05960385Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the center seat belt and the retractor in the reverse order of removal, and note these items:
    • Tighten the bolts by hand first, then tighten to the specified torque.
    • Check that the retractor locking mechanism functions (see INSPECTION  ).
