Section 63 (Seat Belts): Inspection: Retractor

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Before installing the retractor, check that the seat belt can be pulled out freely.
Make sure that the seat belt does not lock when the retractor (A) is leaned slowly up to 15° from the mounted position. The seat belt should lock when the retractor is leaned over 40°. Do not attempt to disassemble the retractor.

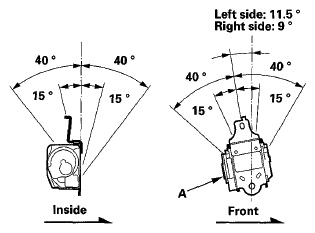

Front

Fig 1: Identifying Retractor - Front
Courtesy of AMERICAN HONDA MOTOR CO., INC.

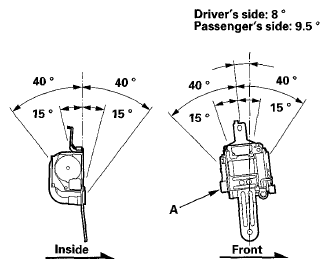

Rear

Fig 2: Identifying Retractor - Rear
Courtesy of AMERICAN HONDA MOTOR CO., INC.

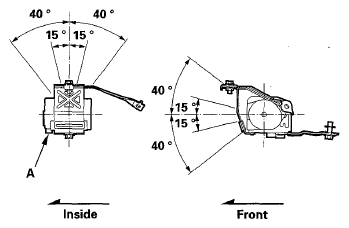

Rear center shoulder

Fig 3: Identifying Retractor - Rear Center Shoulder
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Replace the seat belt with a new assembly if there is any abnormality. Do not disassemble any part of the seat belt for any reason.
