Rear Seat Leg Guide Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push the leg guide cover (A) to release the hook (B), then pull out the cover from the attaching plate (C) and the holder (D) of the leg guide (E).

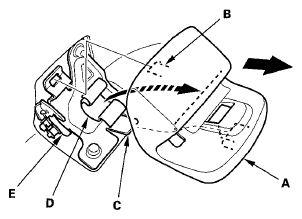

    Fig 1: View Of Leg Guide Cover, Hook, Attaching Plate, Holder & Leg Guide
    G05959635Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the nut and bolt, then remove the leg guide (A).

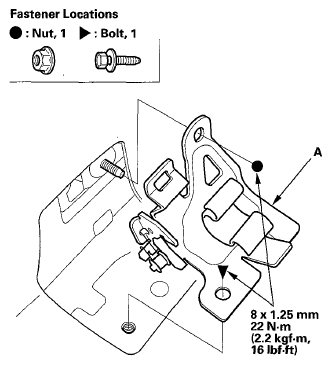

    Fig 2: Leg Guide Nut & Bolt With Torque Specifications
    G05959636Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the leg guide in the reverse order of removal.
