Special Tools Required

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

KTC trim tool set SOJATP2014*

*Available through the Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
Take care not to tear the seams or damage the seat covers.
Put on gloves to protect your hands.
The left rear seat is shown below, the right rear seat is similar.

Remove the rear seat assembly (see REAR SEAT REMOVAL/INSTALLATION ).
Remove the head restraints.

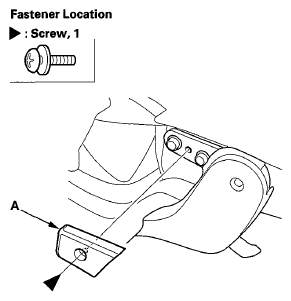

Remove the screw, then remove the recline upper cover (A).

Fig 1: Identifying Recline Upper Cover With Screw Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

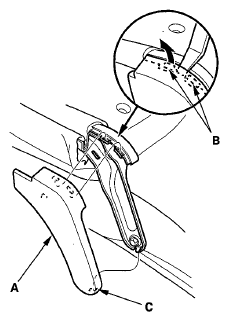

Remove the center cover (A).
1. Release the upper hooks (B) of the cover with the appropriate trim tool.
2. Release the lower hook (C) of the cover, then remove the center cover.
Left rear seat

Fig 2: Identifying Center Cover With Upper & Lower Hooks - Left Rear Seat
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Right rear seat

Fig 3: Identifying Center Cover With Upper & Lower Hooks - Right Rear Seat
Courtesy of AMERICAN HONDA MOTOR CO., INC.

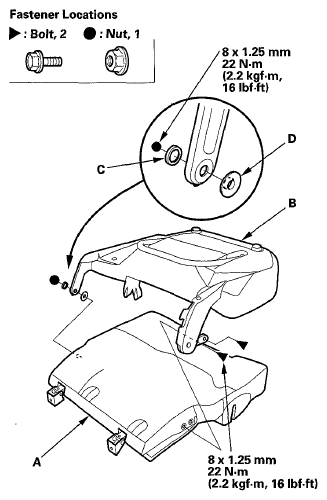

Remove the bolts and nut, then separate the rear seat-back (A) and the rear seat cushion (B).

Fig 4: Rear Seat-Back & Rear Seat Cushion Bolts & Nut With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If necessary, remove the bushing (C) and the pivot washer (D).
Reassemble the seat-back and seat cushion in the reverse order of disassembly, and note these items:
- Apply multipurpose grease to the moving portions of the recline adjusters.
- If the bushings or pivot washers are damaged or stress-whitened, replace them with new ones.
- Make sure the bushing and pivot washer are installed correctly.

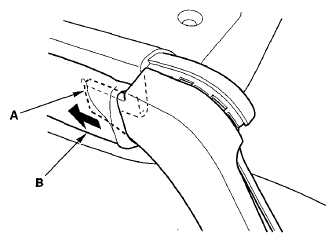

- When installing the center cover, insert the upper portion (A) of the cover into the seat cushion cover (B) securely.
Fig 5: Inserting Upper Portion Of Cover Into Seat Cushion Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
