Outer Recline Cover

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front seat (see FRONT SEAT REMOVAL/INSTALLATION ).
Remove the outer recline cover (A).
1. Fully recline the seat-back.
2. Remove the recline knob (B), and remove the screw.
3. Release the tabs (C) of the outer recline cover from the inner cover (D) with the appropriate trim tool.
4. Detach the clip and the hook (E) by pulling the outer cover out by hand.
Driver's seat

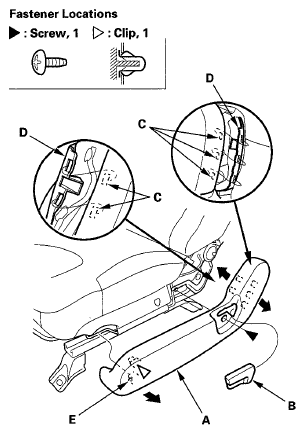

Fig 1: Identifying Outer Recline Cover - Driver's Seat
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Passenger's seat

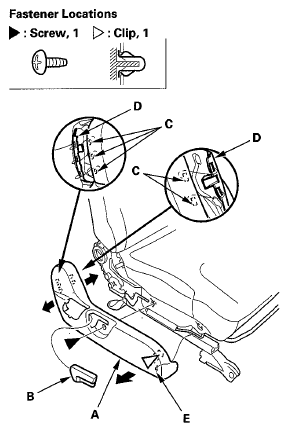

Fig 2: Identifying Outer Recline Cover - Passenger's Seat
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the cover in the reverse order of removal, and note these items:
- If the clip is damaged, replace it with a new one.
- Push the clip, the hook, and the tabs into place securely.
