For Some Driver's Seat

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Take care not to tear the seams or damage the seat covers.
  • Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
  1. Remove the cap (A) by detaching the hooks (B) with the appropriate trim tool.

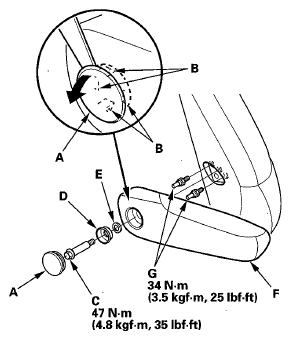

    Fig 1: Cap & Hooks With Torque Specifications
    G05959601Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the center pin (C), the bushing (D), and the washer (E), then remove the armrest (F).
  3. If necessary, remove the pins (G) from the seat-back.
  4. Install the armrest in the reverse order of removal. Apply multipurpose grease to the moving portion of the armrest.
