Oil/Air Separator Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Remove the all of the old liquid gasket from the oil/air separator mating surfaces, the bolts, and the bolt holes.
Clean and dry the oil/air separator mating surfaces.
Apply liquid gasket (P/N 08717-0004, 08718-0001, 08718-0003, or 08718-0009) to the engine block mating surface of the oil/air separator and to the inside edge of the bolt holes. Install the component within 5 minutes of applying the liquid gasket.
NOTE:
- Apply liquid gasket about 1.5 mm (0.06 in.) diameter bead along the broken line (A).
- If you apply liquid gasket P/N 08718-0012, the component must be installed within 4 minutes.
- If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.

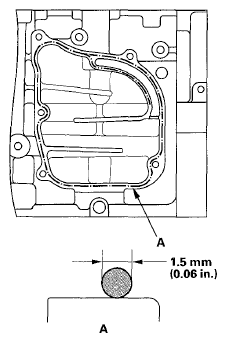

  Fig 1: Identifying Liquid Gasket Applying Area
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the oil/air separator.
NOTE:
- Wait at least 30 minutes before filling the engine with oil.
- Do not run the engine for at least 3 hours after installing the oil/air separator.

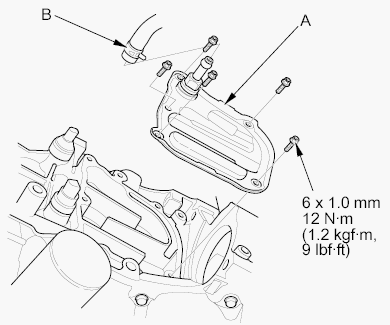

  Fig 2: Oil & Air Separator With Torque Specifications
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the PCV hose (B).
