Oil Pump Overhaul: Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the O-ring groove and the mating surface of the engine block.
  2. Install the oil pump (A) with a new O-ring (B).

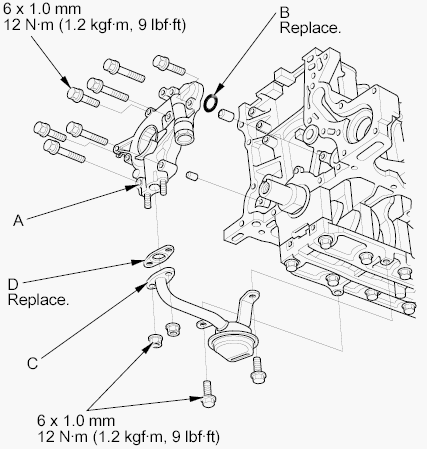

    Fig 1: Oil Pump, O-Ring, Oil Screen & Gasket With Torque Specifications
    G00504605Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the oil screen (C) with a new gasket (D).
  4. Install the oil pan (see CKP PULSE PLATE REPLACEMENT ).
  5. Support the engine with a jack and a wood block under the oil pan.
  6. Remove the engine hanger and support eyelet, then tighten the alternator mounting bolt.

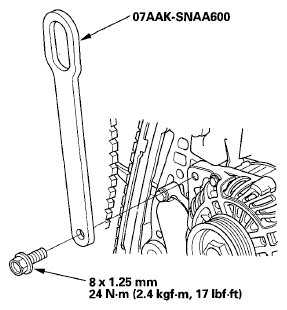

    Fig 2: Support Eyelet (07AAK-SNAA600) With Torque Specifications
    G05952679Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Install the cam chain (see CAM CHAIN INSTALLATION ).
  8. Remove the jack and the wood block from under the oil pan.
  9. Install the under-cowl panel.
  10. Refill the engine with engine oil (see ENGINE OIL REPLACEMENT , and ENGINE OIL LEVEL CHECK  ).
