Rear Door Pad Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The rear door pad replacement procedure applies to 2011 - 2012 models.

Put on gloves to protect your hands.
Take care not to scratch the door or related parts.

Remove the door panel (see REAR DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the power door lock actuator connector, then detach the harness clip (see step 3 ).
Remove the plastic cover, as needed (see step 4 ).
Raise the glass fully.
Remove the clip securing the pad (A), and release the hooks (B), then remove it.

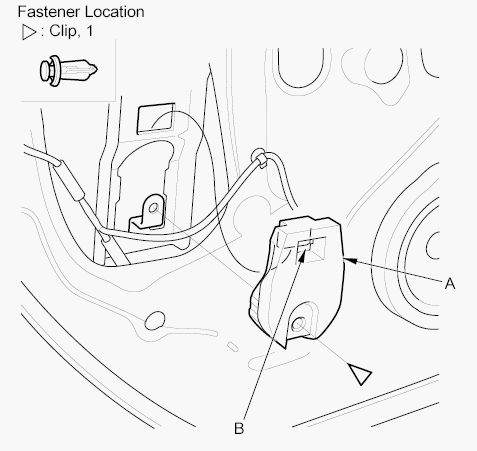

Fig 1: Identifying Rear Door Pad And Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the pad in the reverse order of removal. When installing the door panel, make sure the plastic cover is installed properly and sealed around its outside perimeter to seal out water.
