Front Door Sash Outer Trim Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Take care not to scratch the door or related parts.

Remove the door sash outer trim (A).
1. Remove the screw from inside the door.
2. Release the lower edge of the trim from the door glass outer weatherstrip (B).
3. Pull the trim up to release the hooks (C) from the door, then remove the trim.

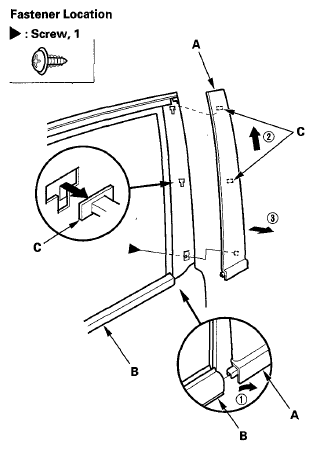

  Fig 1: Identifying Door Sash Outer Trim & Door Glass Outer Weatherstrip
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the trim in the reverse order of removal. Make sure that there is no clearance between the rear edge of the door glass outer weatherstrip and the trim.
