Special Tools Required

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

KTC trim tool set SOJATP2014*
Trim pad remover, Snap-on A177A or equivalent, commercially available
*Available through the Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Take care not to scratch the door or related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the screw securing the inner handle (A).

Fig 1: Identifying Inner Handle With Screw
Courtesy of AMERICAN HONDA MOTOR CO., INC.

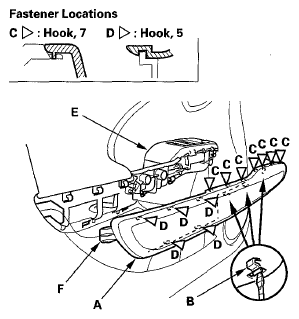

Remove the grip cover (A).
1. Pry out the front bottom edge of the cover, using a flat-tip screwdriver wrapped with protective tape, while pushing up the hooks (B).
2. From front to rear, pry out along the edge of the cover to release the hooks (C, D) from the power window switch panel (E).
3. Release the rear hook (F) by pulling the cover forward.

  Fig 2: Identifying Grip Cover, Power Window Switch Panel & Hooks
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

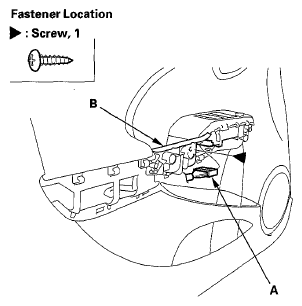

Disconnect the power window switch connector (A). Remove the screw from the grip base (B).

Fig 3: Identifying Power Window Switch Connector & Grip Base With Screw
Courtesy of AMERICAN HONDA MOTOR CO., INC.

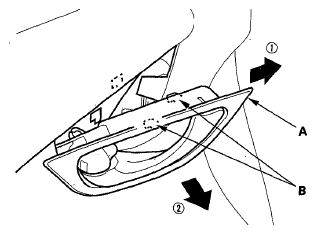

Pull the inner handle (A) forward and out half-way to release the hooks (B).

Fig 4: Pulling Inner Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.

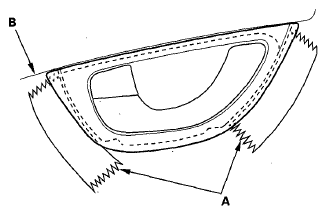

Apply protective tape (A) to the door panel (B) as shown below.

Fig 5: Identifying Door Panel & Protective Tape Applying Area
Courtesy of AMERICAN HONDA MOTOR CO., INC.

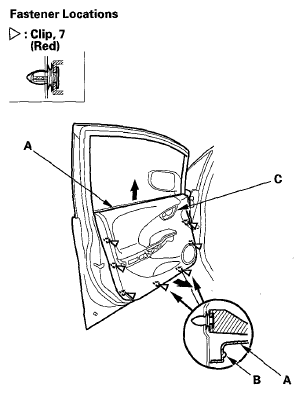

Remove the door panel (A) with as little bending as possible to avoid creasing or breaking it.
1. Start at the bottom edge of the door panel, release the clips that are just above the marks (B) on the edge of the panel with a commercially available trim pad remover.
2. Detach the upper clips.
3. Starting at the rear, pull the door panel upward.
  NOTE: Do not pull the door panel up too far, or the door panel will be damaged by the inner handle (C).

  Fig 6: Identifying Door Panel
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

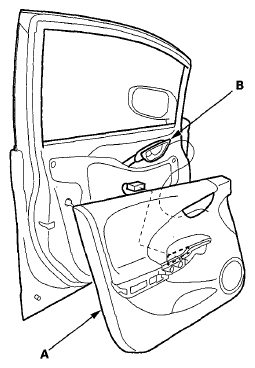

Remove the door panel (A) while pulling the inner handle (B) out through the hole in the door panel.

Fig 7: Identifying Door Panel & Inner Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the door panel in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Make sure the power window switch connector is plugged in properly.
- When reinstalling the door panel, make sure the plastic cover is installed properly and sealed around its outside perimeter to seal out water.
