Front Door Pad Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the door.
  1. Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION  ).
  2. Disconnect the power door lock actuator connector, and detach the harness clips (see step  3 ).
  3. Remove the plastic cover, as needed (see step  4 ).
  4. Raise the glass fully.
  5. Remove the bolt securing the pad (A), and release the hooks (B), then remove it.

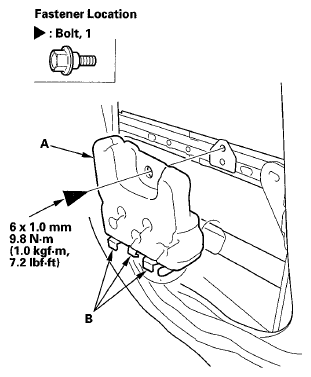

    Fig 1: Pad, Hooks & Bolt With Torque Specifications
    G05959369Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the pad in the reverse order of removal. When installing the door panel, make sure the plastic cover is installed properly and sealed around its outside perimeter to seal out water.
