Special Tools Required

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

KTC trim tool set SOJATP2014*

*Available through the Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the door or related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Raise the glass fully.

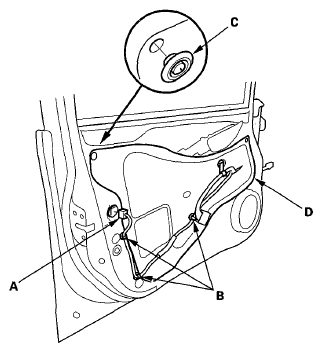

With power door lock: Disconnect the power door lock actuator connector (A), and detach the harness clips (B).

Fig 1: Identifying Power Door Lock Actuator Connector, Harness Clips, Rear Plug Cap & Plastic Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the rear plug cap (C), then remove the plastic cover (D) as needed.
NOTE: If the plastic cover is damaged or torn, replace it.
Detach the rod fastener (A), then disconnect the outer handle rod (B) with a clip remover.

Fig 2: Identifying Rod Fastener & Outer Handle Rod
Courtesy of AMERICAN HONDA MOTOR CO., INC.

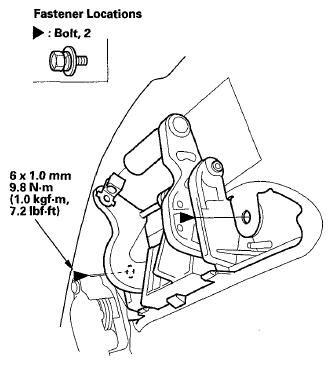

Remove the bolts.

Fig 3: Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

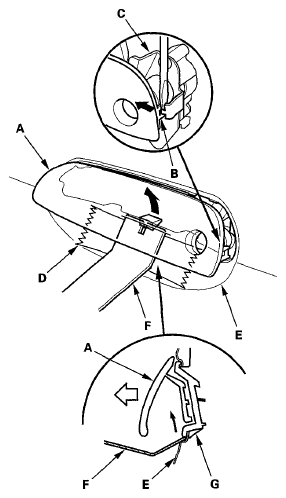

Remove the outer handle (A).
1. With door cylinder: Release the hook (B) of the outer handle protector (C).
2. Apply protective tape (D) to the door (E) as shown below.
3. Pry out the outer handle with the appropriate trim tool (F) to release the hook (G), then remove it.
  NOTE: Take care not to scratch the door.

  Fig 4: Identifying Hook Of Outer Handle Protector
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

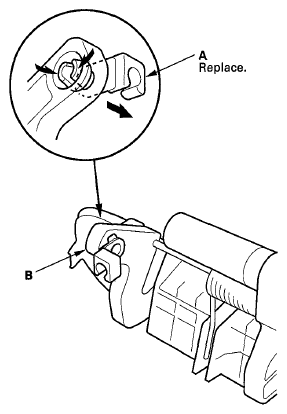

Remove the rod fastener (A) from the outer handle (B), then replace it with a new one.

Fig 5: Identifying Rod Fastener From Outer Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.

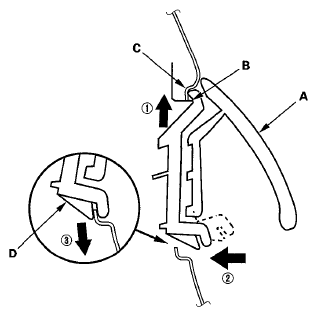

Install the handle (A) in the following order.
1. Set the upper portion (B) of the handle to the edge (C) of the door handle opening.
2. While pulling up the handle, push the lower hook (D) into place.
  NOTE: Push the hook into place securely.

  Fig 6: Identifying Handle, Upper Portion, Edge & Lower Hook
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the removed parts in the reverse order of removal, and note these items:
- Make sure that the actuator connector is plugged in properly, and that the outer handle rod is connected securely.
- Make sure the door handle works properly.
- When reinstalling the door panel, make sure the plastic cover is installed properly and sealed around its outside perimeter to seal out water.
