Front Door Glass and Regulator Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the door or related parts.
  1. Remove the these items:
  2. With power door lock: Disconnect the power door lock actuator connector (A), and detach the harness clips (B).

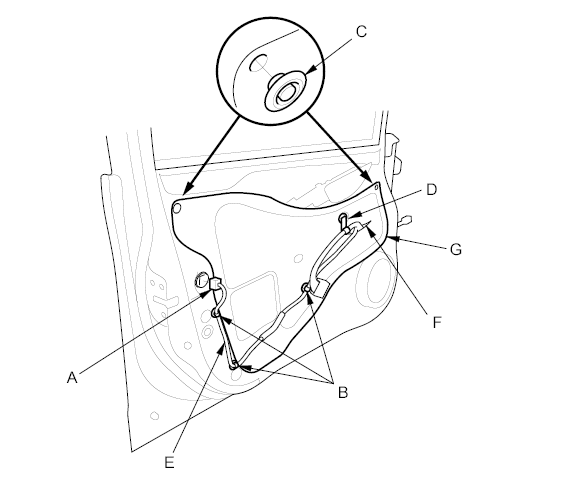

    Fig 1: Identifying Power Door Lock Actuator Connector, Harness Clips, Plug Caps & Wire Harness
    G00491893Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the plug caps (C), and detach the harness clip (D). Pass the wire harnesses (E) through the slit (F) in the plastic cover (G), then remove the plastic cover.
    NOTE: If the plastic cover is damaged or torn, replace it.
  4. Carefully raise the glass (A) until you can see the bolts, then remove them. Carefully pull the glass out through the window slot.
    NOTE: Take care not to drop the glass inside the door.

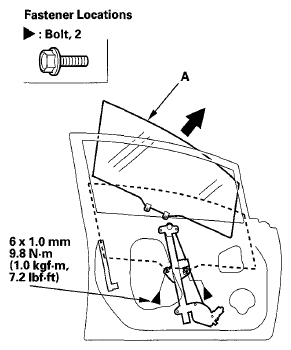

    Fig 2: Glass With Torque Specifications
    G05959366Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Disconnect the connector (A) from the regulator (B).

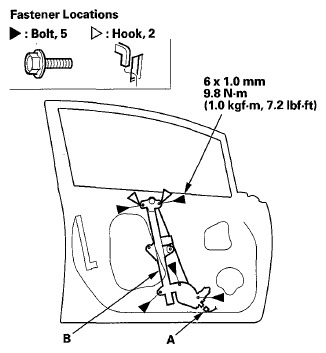

    Fig 3: Connector, Regulator, Bolts & Hooks With Torque Specifications
    G05959367Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the bolts, and release the hooks, then remove the regulator through the hole in the door.
  7. Apply multipurpose grease to all the sliding surfaces of the regulator (A) where shown.
    Fig 4: Identifying Regulator Grease Applying Area
    G05959368Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Install the glass and regulator in the reverse order of removal, and note these items:
    • Move the glass up and down to verify it moves freely without binding.
    • Make sure that there is no clearance between the glass and glass run channel when the glass is closed.
    • Adjust the position of the glass as necessary (see DOOR GLASS ADJUSTMENT  ).
    • Driver's door: Do the power window control unit reset procedure (see RESETTING THE POWER WINDOW CONTROL UNIT ).
    • When reinstalling the door panel, make sure the plastic cover is installed properly and sealed around its outside perimeter to seal out water.
    • Check for water leaks (see step  8 ).
    • Test-drive, and check for wind noise and rattles.
    • Make sure the power door locks, the windows, and the power mirror operate properly.
