Component Location Index - Rear Door

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

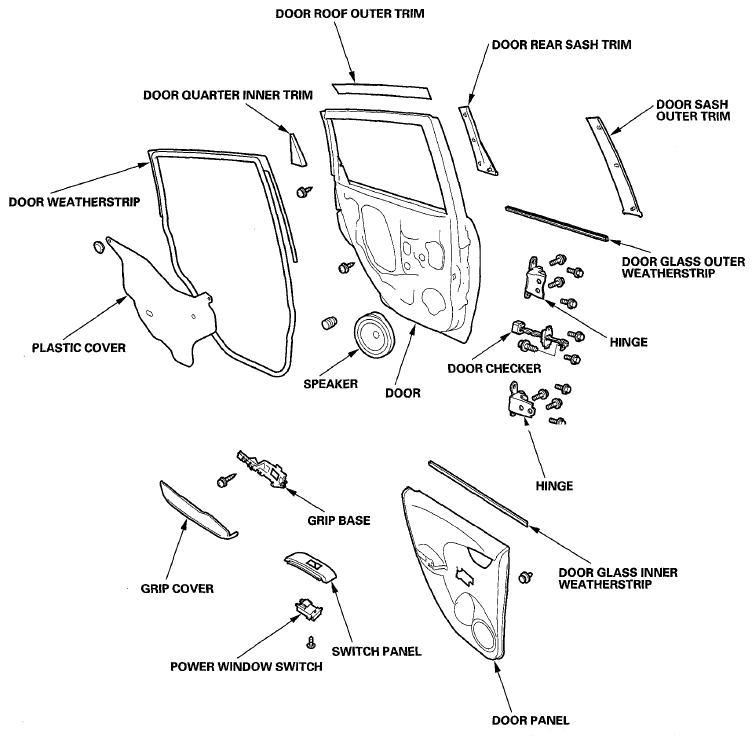

Fig 1: Identifying Rear Door Replacement Components (1 Of 2)
G05959340Courtesy of AMERICAN HONDA MOTOR CO., INC.

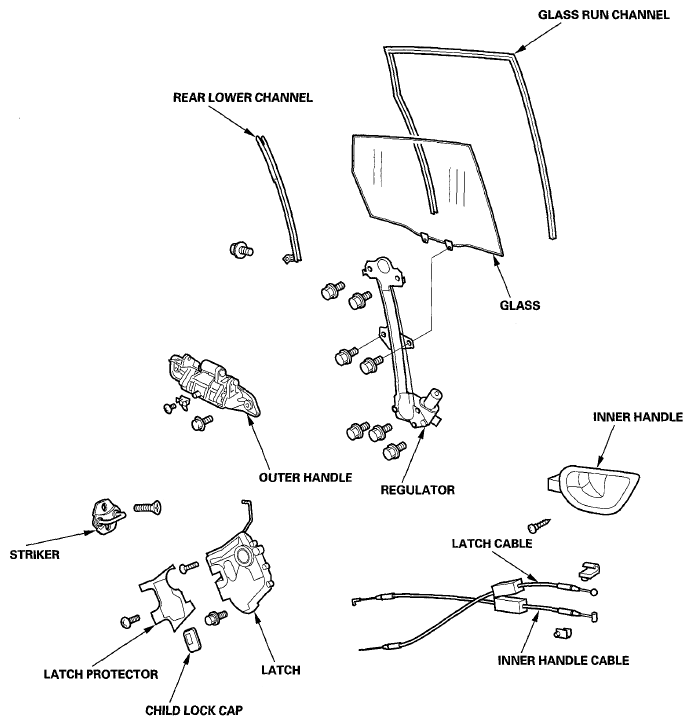

Fig 2: Identifying Rear Door Replacement Components (2 Of 2)
G05959341Courtesy of AMERICAN HONDA MOTOR CO., INC.
