Component Location Index - Front Door

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

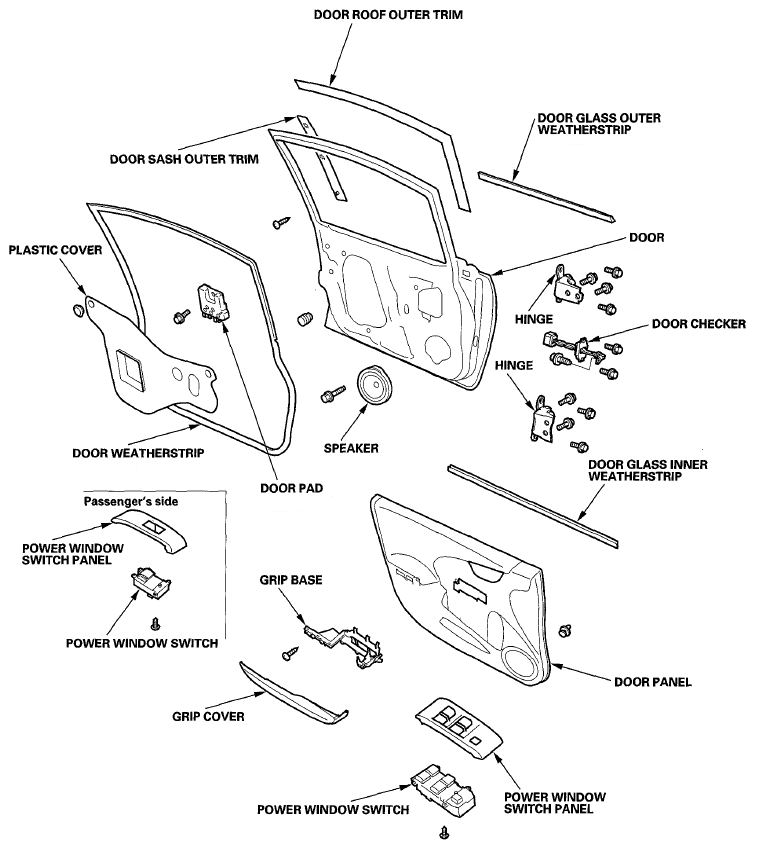

Fig 1: Identifying Front Door Replacement Components (1 Of 2)
G05959338Courtesy of AMERICAN HONDA MOTOR CO., INC.

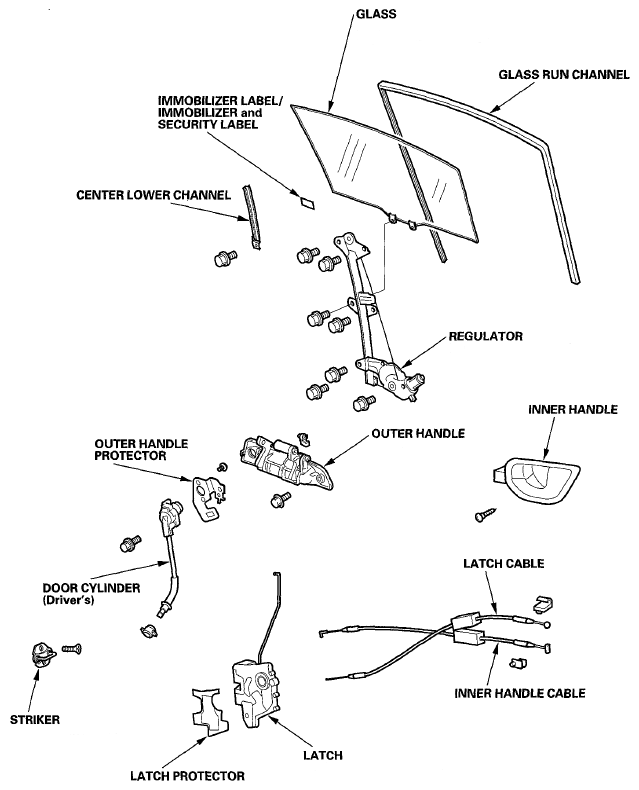

Fig 2: Identifying Front Door Replacement Components (2 Of 2)
G05959339Courtesy of AMERICAN HONDA MOTOR CO., INC.
