Stabilizer Bushing Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a lift (see LIFT AND SUPPORT POINTS ).
  2. Remove the stabilizer bushing (A) from the axle beam.

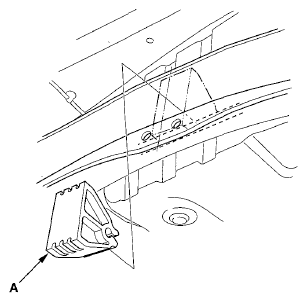

    Fig 1: Identifying Stabilizer Bushing
    G05959135Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Apply silicone spray (P/N 08209-0001) to the new stabilizer bushing. This will ease installation of the bushing into the stabilizer and the axle beam.
    NOTE: When spraying any agents that contain silicone, cover all the connectors, terminals, and switches in area with a protective cloth or plastic sheet.
  4. Install the stabilizer bushing (A) into the axle beam by aligning the end face of the stabilizer bushing to the center of hole (B).
    NOTE:
    • Securely install the stabilizer (C) into the stabilizer bushing groove (D).
    • Make sure the stabilizer bushing is not protrusion the end of the axle beam (E).

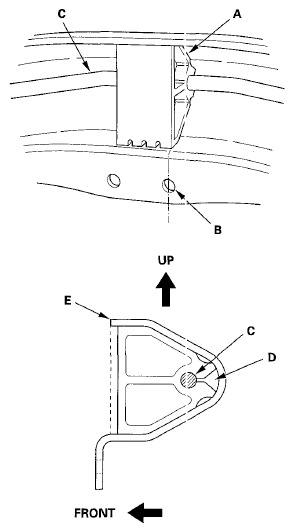

      Fig 2: Identifying Stabilizer Bushing, Center Of Hole, Stabilizer & Axle Beam
      G05959136Courtesy of AMERICAN HONDA MOTOR CO., INC.
