Exploded View

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

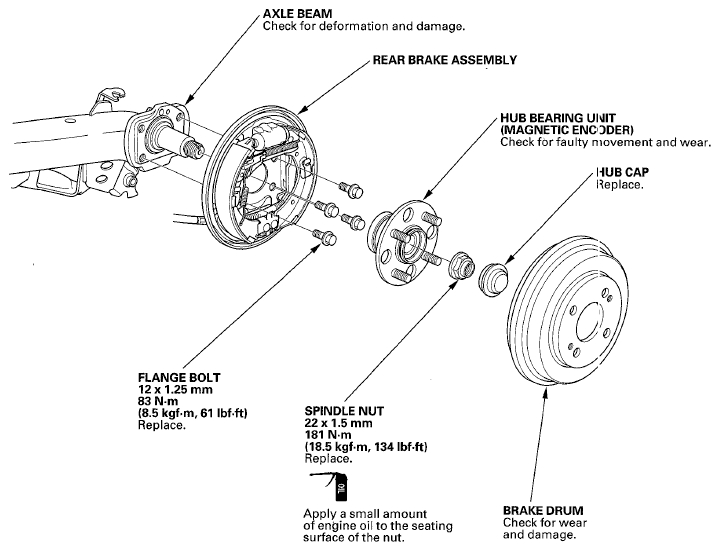

Fig 1: Identifying Hub Bearing Replacement Components With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Raise the vehicle on a lift (see LIFT AND SUPPORT POINTS ).
Remove the wheel nuts and the rear wheel.

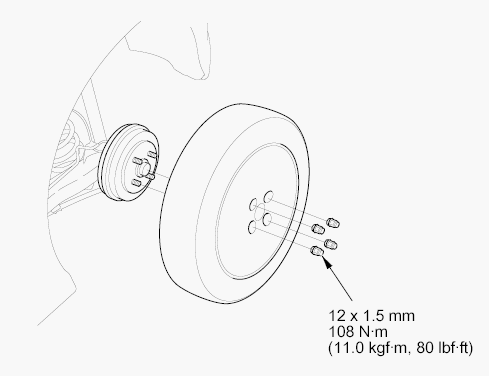

Fig 2: Wheel Nuts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

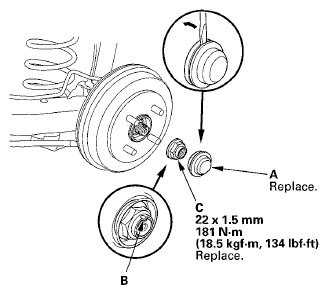

Remove the hub cap (A). Raise the stake (B), then remove the spindle nut (C). Remove the brake drum (see REAR BRAKE DRUM REPLACEMENT ).

Fig 3: Hub Cap, Stake & Spindle Nut With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the hub bearing unit (A) from the spindle.

Fig 4: Identifying Hub Bearing Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check the hub bearing unit for damage and cracks.
Install the hub bearing unit in the reverse order of removal, and note these items:
- Tighten all mounting hardware to the specified torque values.
- Use a new spindle nut and hub cap on reassembly.
- Before installing the spindle nut, apply a small amount of engine oil to the seating surface of the nut. After tightening, use a drift to stake the spindle nut shoulder against the spindle.
- Before installing the brake drum, clean the mating surface of the hub bearing unit and the inside of the brake drum.
- Before installing the wheel, clean the mating surface of the brake drum and the inside of the wheel.
