Damper Replacement: Inspection

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the flange nut on the damper shaft end, and set the socket wrench and T-handle on the nut.
  2. Compress the damper assembly by hand, and check for smooth operation through a full stroke, both compression and extension. The damper should extend smoothly and constantly when compression is released. If it does not, the gas is leaking and the damper should be replaced.

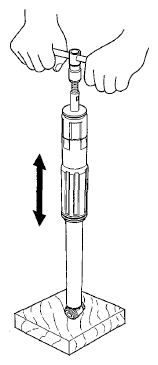

    Fig 1: Checking Damper Assembly
    G05959119Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for oil leaks, abnormal noises, and binding during these tests.
