Rear Strake Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Take care not to scratch the body.

Remove the clips, then remove the rear strake (A) from the body.
NOTE: To release the clips, pry up on the center pin at the notch (B).

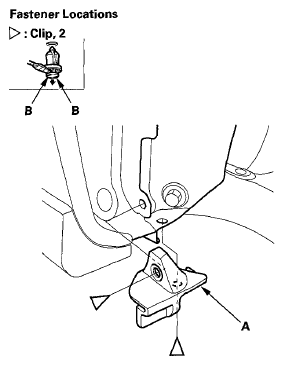

Fig 1: Identifying Rear Strake
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the strake in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
