Rear Inner Fender Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body.

Remove the screws (A) and the clips (B, C), then remove the rear inner fender (D).
NOTE: To release the clips, pry up on the center pin at the notch (E).

Left side

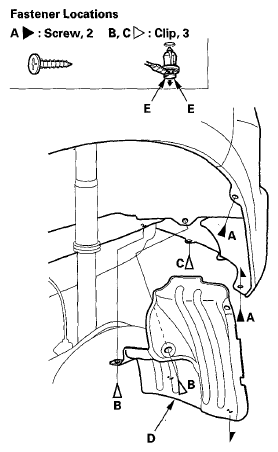

Fig 1: Identifying Rear Inner Fender With Fastener Location - Left Side
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Right side

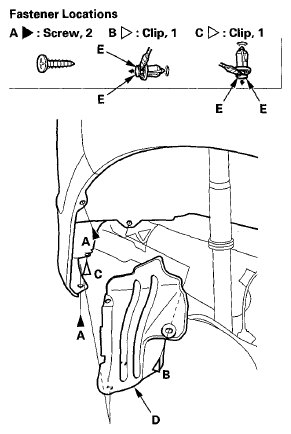

Fig 2: Identifying Rear Inner Fender With Fastener Location - Right Side
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the cover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
