Front Fender Fairing Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body.

Remove the front inner fender as needed (see FRONT INNER FENDER REPLACEMENT ).
From the wheel arch, remove the clip and the maintenance plug (A).

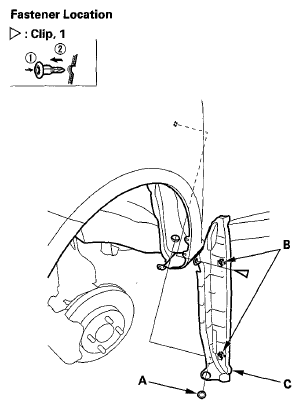

Fig 1: Identifying Maintenance Plug, Hooks & Front Fender Fairing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Release the hooks (B) of the front fender fairing (C) from the holes in the front fender, and pull the fender fairing out, then remove it.
Install the fender fairing in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Before installing the clips, make sure the hooks (A) of the front fender fairing (B) are installed into the holes (C) in the front fender securely.
- Push the clip into place securely.
Fig 2: Identifying Front Fender Fairing, Hooks & Holes
Courtesy of AMERICAN HONDA MOTOR CO., INC.
