Wiper Motor Replacement: Windshield: Removal

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper arms (see WIPER ARM REPLACEMENT  ).
  2. Remove the cowl cover (see COWL COVER REPLACEMENT ).
  3. Disconnect the 5P connector (A) from the wiper motor (B).

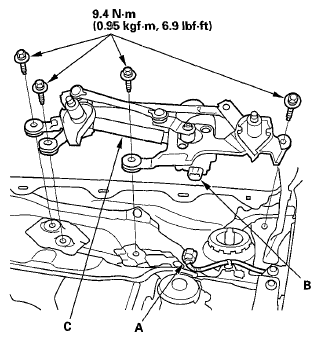

    Fig 1: Wiper Motor & 5P Connector With Torque Specifications
    G05960105Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the bolts and the wiper linkage assembly (C).
  5. Mark lines (A) to show the original adjustment, then remove the connection rod (B) from the linkage (C).

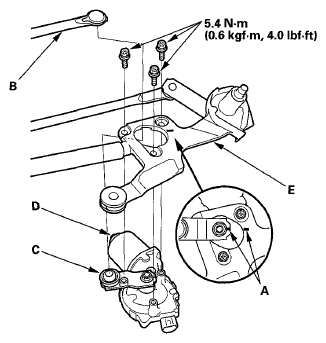

    Fig 2: Connection Rod & Linkage With Torque Specifications
    G05960106Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the three bolts and the separate the wiper motor (D) from the linkage assembly (E) through the hole.
