Rear Window

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the wiper blade assemblies (A), and remove the lock from the wiper arm (B).

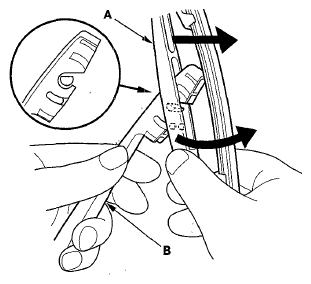

    Fig 1: Identifying Wiper Blade Assemblies & Wiper Arm
    G05960116Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Pull the wiper blade (A) up, and slide it out from the wiper blade holder (B).

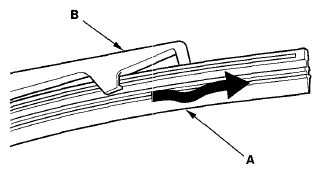

    Fig 2: Identifying Wiper Blade & Holder
    G05960117Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install a new wiper blade in the reverse order of removal.
  4. Test the wiper operation. If the blade slips, turn the wiper switch OFF, and reinstall the blade securely.
