Washer Nozzle Position

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

When you turn on the washers, make sure 50% or more of the washer fluid lands within the spray area. If the spray area is not within the standard positions, adjust the nozzles.
Windshield
1. Position at about 601 mm (23.6 in.) from the top of the black ceramic area (B) at the lower windshield.
2. Position at about 485 mm (19.09 in.) from the top of the black ceramic area (B) at the lower windshield.
3. Position at about 601 mm (23.6 in.) from the top of the black ceramic area (B) at the lower windshield.
4. Position at about 250 mm (9.8 in.) from the windshield center line (C).
5. Position at about 250 mm (9.8 in.) from the windshield center line (C).
  Rear Window
6. Position at about 24.7 mm (0.972 in) from the top of the black ceramic area (E).

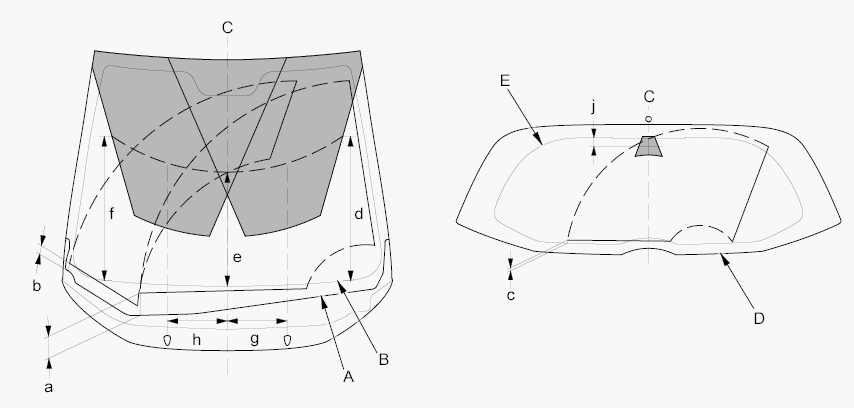

Fig 1: Identifying Washer Nozzle Position Black Ceramic Area
Courtesy of AMERICAN HONDA MOTOR CO., INC.
