Driver's Dashboard Undercover Removal/Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Take care not to scratch the dashboard or its related parts.

Remove the driver's dashboard undercover (A).
1. Turn the lock knob (B) 90°.
2. Gently pull down the rear edge to detach the clip.
3. Pull the undercover away to release the pins (C) from the holders (D).

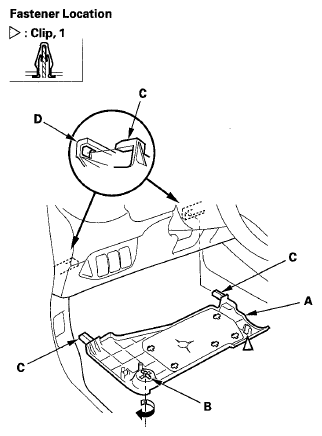

  Fig 1: Removing Driver's Dashboard Undercover
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. With HFL: Disconnect the HFL control unit connector (E).

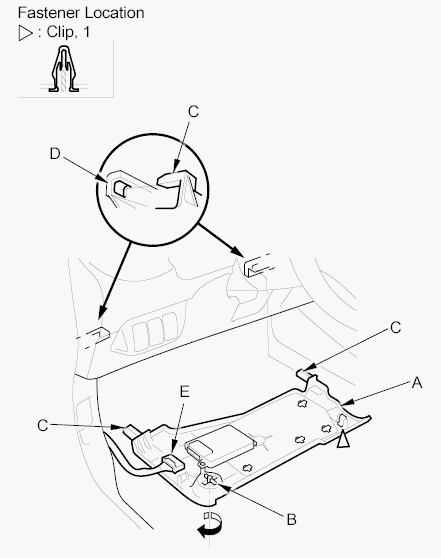

  Fig 2: Removing Driver's Dashboard Undercover (With Handsfree Link)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the undercover in the reverse order of removal, and note these items:
- If the clip is damaged or stress-whitened, replace it with a new one.
- Push the clip and pins into place securely.
