Special Tools Required

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

KTC trim tool set SOJATP2014 *

* Available through the Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Take care not to scratch the dashboard or its related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the fuse access panel (see FUSE ACCESS PANEL REMOVAL/INSTALLATION ).
Remove the driver's dashboard lower cover (A).
1. Pry the front edge of the cover away from the dashboard to release the clips.
2. Pull the cover down to release the hooks (B), then remove the cover.

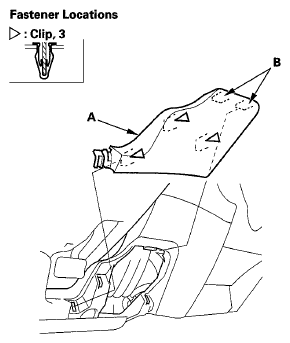

  Fig 1: Identifying Driver's Dashboard Lower Cover & Hooks
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the lower cover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
