Side Vent

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Take care not to scratch the dashboard or its related parts.

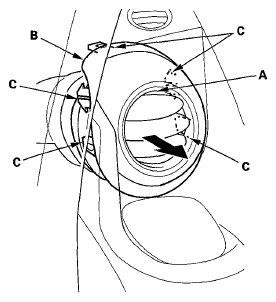

Pull the upper portion (A) of the side vent (B) toward you to release the hooks (C), then remove the side vent.
Driver's side

Fig 1: Pulling Upper Portion Of Side Vent - Driver's Side
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Passenger's side

Fig 2: Pulling Upper Portion Of Side Vent - Passenger's Side
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the side vent in the reverse order of removal, and push the hooks into place securely.
