Center Vent

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Take care not to scratch the dashboard or its related parts.

Remove these items:
- Audio unit, without navigation system (see AUDIO UNIT REMOVAL/INSTALLATION )
- Navigation unit, with navigation system (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION )
Remove the screws, then remove the center vent panel (A) from the center panel (B).

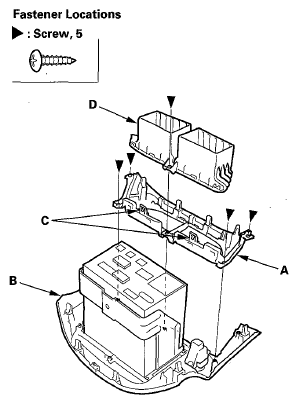

Fig 1: Identifying Center Vent Panel, Center Panel, Hooks & Center Vent
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Release the hooks (C), then remove the center vent (D) from the center vent panel.
Install the center vent in the reverse order of removal, and push the hooks into place securely.
