Dashboard Glove Box Cover Removal/Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Take care not to scratch the dashboard or its related parts.

Remove the dashboard/steering hanger beam (see DASHBOARD/STEERING HANGER BEAM REMOVAL/INSTALLATION ).
Remove the screws and release the hooks (A), then remove the dashboard glove box center cover (B) and the dashboard glove box outer cover (C).
Center

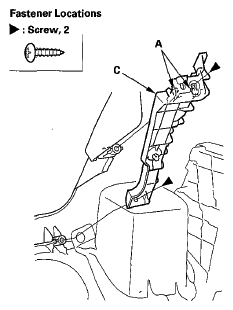

Fig 1: Identifying Hooks, Dashboard Glove Box Center Cover & Dashboard Glove Box Outer Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Outer

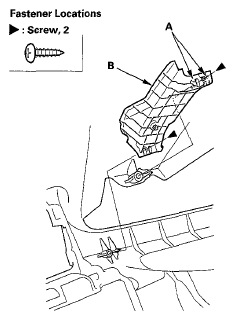

Fig 2: Identifying Hooks & Dashboard Glove Box Center Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the covers in the reverse order of removal.
