Special Tools Required

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

KTC trim tool set SOJATP2014*

* Available through the Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Take care not to scratch the dashboard or its related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the dashboard center lower cover (see DASHBOARD CENTER LOWER COVER REMOVAL/INSTALLATION ).
Remove the dashboard center lower trim (A).
1. Pry between the dashboard (B) and the upper side of the dashboard center lower trim with the appropriate trim tool. Pry put the trim to release the clips and the hooks (C).
2. Pull out the dashboard center lower trim slightly toward you, and disconnect the accessory power socket connector (D) and the auxiliary jack connector (E) (if equipped).

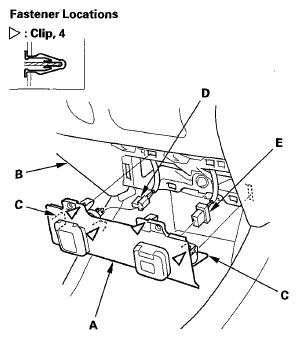

  Fig 1: Identifying Dashboard Center Lower Trim, Dashboard, Hooks, Accessory Power Socket Connector & Auxiliary Jack Connector
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the trim in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
- Make sure the connectors are plugged in properly.
