Output Shaft (Countershaft) Speed Sensor Replacement: M/T

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a lift.
  2. Disconnect the output shaft (countershaft) speed sensor connector (A).

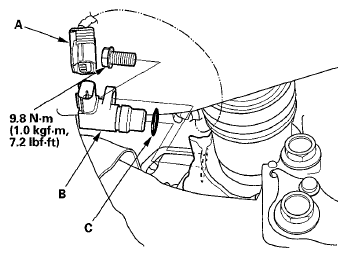

    Fig 1: Output Shaft (Countershaft) Speed Sensor Connector, Output Shaft (Countershaft) Speed Sensor & O-Ring With Torque Specifications
    G05953011Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the output shaft (countershaft) speed sensor (B).
  4. Install the parts in the reverse order of removal with a new O-ring (C).
