Special Tools Required

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

TPMS trigger tool ATEQ VT55
Available through the Honda Tool and Equipment Program; call 888-424-6857

All four tire pressure sensor IDs must be memorized to the TPMS control unit whenever you do any of these actions:

Replace the TPMS control unit.
Replace the tire pressure sensor.
Substitute a known-good wheel with tire pressure sensor.

NOTE:

The TPMS tool (ATEQ VT55) is necessary to do this procedure.
Make sure the TPMS tool has the latest software. Check the official Honda service website for more service information about the TPMS tool.
To ensure the control unit memorizes the correct ID, the vehicle with the new sensor must be at least 10 ft (3 m) away from other vehicles that have tire pressure sensors.
When doing a tire rotation, memorizing the sensors in not needed.
Let the vehicle sit for at least 5 minutes to allow the sensors to switch to sleep mode.

With the ignition switch in LOCK (0), connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.

Fig 1: Identifying Data Link Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the ignition switch to ON (II).
Make sure the HDS communicates with the vehicle and the TPMS control unit. If it doesn't, troubleshoot the DLC circuit (see DLC CIRCUIT TROUBLESHOOTING ).
Select Sensor ID Learning from the mode menu on the HDS.
Follow HDS screen prompts to turn on the TPMS tool (A). Verify that the power switch (B) is in the "Low" position.
Hold the TPMS tool near the valve stem of one wheel, memorize the pressure sensor ID by following the screen prompts on the HDS.
NOTE:
- See the HDS Help menu for specific instructions.
- If you turn the ignition switch to LOCK (0) before memorizing all four sensor IDs, the memorizing sensor ID is canceled.
- If more than one sensor ID is displayed on the HDS, verify that the vehicle has not been driven for 5 minutes, and there are no other vehicles or tire pressure sensors within 10 ft (3 m).

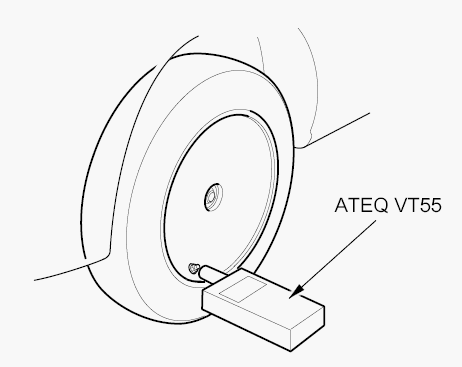

Fig 2: Holding TPMS Tool Valve Stem Of Wheel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Repeat step 6 for each wheel until all four sensor IDs are memorized. When all four IDs are memorized, the low tire pressure indicator blinks.
Turn the ignition switch to LOCK (0).
Disconnect the HDS from the DLC.
Test-drive the vehicle at 28 mph (45 km/h) or more for at least 1 minute.
Make sure the low tire pressure indicator does not blink.
Make sure the tires are inflated to the specified tire pressure listed on the doorjamb sticker.
Turn the ignition switch to LOCK (0).
