Rack End Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not allow dust, dirt, or other foreign materials to enter the steering gearbox.

Remove the steering gearbox (see STEERING GEARBOX REMOVAL AND INSTALLATION ).
Remove the tie-rod ends.

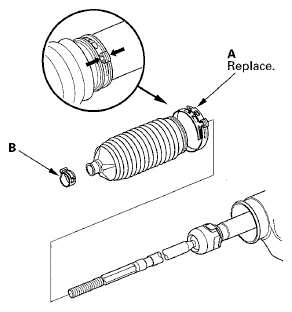

Remove the boot bands (A), and discard them. Remove the tie-rod clips (B), and pull the boots away from the ends of the steering gearbox.

Fig 1: Identifying Boot Bands & Tie-Rod Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Hold the gearbox housing using a C-clamp (A) and wooden blocks (B) to a work bench as shown. Do not clamp the cylinder part of the gearbox housing in a vise.

Fig 2: Identifying Gearbox Housing C-Clamp & Wooden Blocks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Unbend the lock washer (A).

Fig 3: Identifying Lock Washer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Unscrew both rack ends (A) with a wrench. Be careful not to damage the rack shaft surface with the wrench. Remove the rack end, the lock washer (B), the spacer (C), and rubber stop (D).

Fig 4: Identifying Rack End, Lock Washer, Spacer & Rubber Stop
Courtesy of AMERICAN HONDA MOTOR CO., INC.
