EPS Motor Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering gearbox (see STEERING GEARBOX REMOVAL AND INSTALLATION  ).
  2. Remove the EPS motor 3P connector (A) and EPS motor angle sensor 8P connector (B) from the connector bracket (C), then remove clips (D).

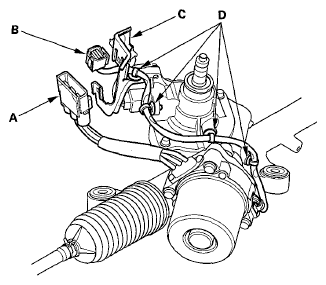

    Fig 1: Identifying EPS Motor 3P Connector & EPS Motor Angle Sensor 8P Connector With Clips
    G05958993Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the EPS motor (A) from the steering gearbox, then remove the O-rings (B, C).
    NOTE: Do not discard the O-ring (C).

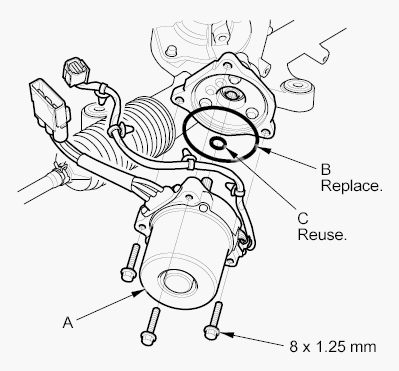

    Fig 2: Identifying EPS Motor From Steering Gearbox And O-Rings
    G05958994Courtesy of AMERICAN HONDA MOTOR CO., INC.
