DTC 61-04: Motor Harness Malfunction
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
- Turn the ignition switch to ON (II).
- Clear the DTC with the HDS.
- Turn the ignition switch to LOCK (0).
- Start the engine.
- Check for DTCs with the HDS.
Is DTC 61-04 indicated?
YES - Go to step 6.
NO - Intermittent failure, the system is OK at this time.
- Turn the ignition switch to LOCK (0).
- Disconnect EPS control unit connector B (16P), (see EPS CONTROL UNIT REMOVAL/INSTALLATION ).

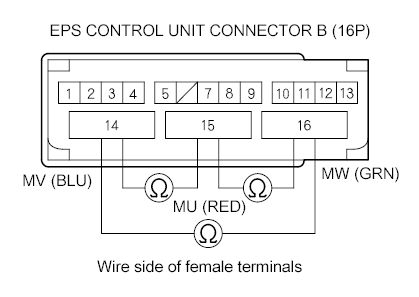

- Check for continuity between EPS control unit connector B (16P) terminals No. 14 and No. 15, No. 14 and No. 16, No. 15 and No. 16 individually.Fig 1: Measuring Voltage Between Body Ground & EPS Control Unit Connector B (16P) Terminals 14, 15 & 16
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES - Check for loose terminals in the EPS control unit connectors, and repair if necessary. If no poor connections are found, replace the EPS control unit (see EPS Control Unit Removal/Installation ).
NO - Go to step 9.
- Disconnect the EPS motor 3P connector (see EPS MOTOR REMOVAL AND INSTALLATION ).
- On the EPS motor side, check for continuity between EPS motor 3P connector terminals No. 1 and No. 2, No. 1 and No. 3, and No. 2 and No. 3 individually.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES - Repair an open in the wire between EPS control unit and EPS motor.
NO - Replace the EPS motor (see EPS Motor Removal and Installation ).
