ABS Indicator, Brake System Indicator, and VSA Indicator Do Not Go Off

WARNING: This page is about a different car, the 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Turn the ignition switch to LOCK (0).
Check the No. 11 (7.5 A) fuse in the under-dash fuse/relay box.
Is the fuse blown?

YES - Replace the fuse. Turn the ignition switch to ON (II), then turn it to LOCK (0) again. If the fuse blows again, repair the short to ground on the No. 11 (7.5 A) fuse circuit.

NO - Reinstall the checked fuse, then go to step 4.
Check the No. 37 (30 A) fuse in the under-dash fuse/relay box.
Is the fuse blown?

YES - Replace the fuse. Turn the ignition switch to ON (II), then turn it to LOCK (0) again. If the fuse blows again, repair the short to ground on the No. 37 (30 A) fuse circuit.

NO - Reinstall the checked fuse, then go to step 4.
Do the gauge control module self-diagnostic function.
Is the gauge control module OK?

YES - Go to step 5

NO - Substitute a known-good gauge control module and recheck. If it is OK, replace the original gauge control module (see GAUGE CONTROL MODULE REPLACEMENT ).
Turn the ignition switch to LOCK (0).
Disconnect the VSA modulator-control unit 36P connector (see step 3 ).
Turn the ignition switch to ON (II).
Measure the voltage between VSA modulator-control unit 36P connector terminal No. 30 and body ground.
Is there battery voltage?

YES - Go to step 9.

NO - Repair open in the wire between the No. 11 (7.5 A) fuse in the under-dash fuse/relay box and the VSA modulator-control unit.

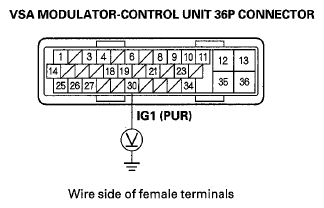

Fig 1: Measuring Voltage Between VSA Modulator-Control Unit 36P Connector Terminal No. 30 & Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the ignition switch to LOCK (0).
Measure the voltage between VSA modulator-control unit 36P connector terminal No. 12 and body ground.

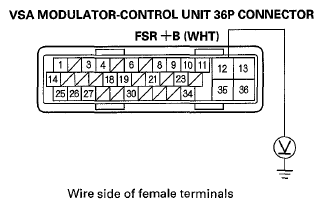

Fig 2: Measuring Voltage Between VSA Modulator-Control Unit 36P Connector Terminal No. 12 & Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES - Go to step 11

NO - Repair open in the wire between the No. 37 (30 A) fuse in the under-dash fuse/relay box and the VSA modulator-control unit.
Check for continuity between VSA modulator-control unit 36P connector terminal No. 35 and body ground.

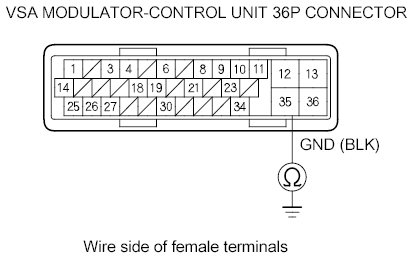

Fig 3: Checking For Continuity Between VSA Modulator-Control Unit 36P Connector Terminal No. 35 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 12

NO - Repair an open in the wire between the VSA modulator-control unit and body ground (G202).
Disconnect the gauge control module 32P connector.

Check for continuity between the VSA modulator-control unit 36P connector terminal and gauge control module 32P connector terminal (see table below).

CONNECTOR TERMINAL REFERENCE TABLE

Sign	VSA Modulator-control Unit 36P Connector Terminal	Gauge Control Module 32P Connector Terminal
F-CAN-L	No. 1	No. 29
F-CAN-H	No. 14	No. 30

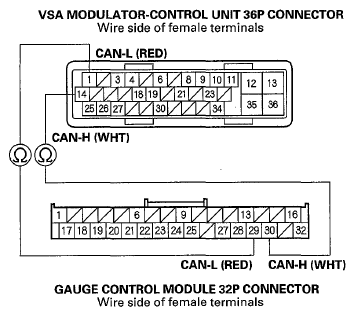

Fig 4: Checking Continuity Between VSA Modulator-Control Unit 36P & Gauge Control Module 32P Connector Terminal

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 14.

NO - Repair an open in the wire between the gauge control module and the VSA modulator-control unit.

Reconnect all connectors.
Update the VSA modulator-control unit if it does not have the latest software (see VSA MODULATOR-CONTROL UNIT UPDATE ).
Turn the ignition switch to LOCK (0), then turn it to ON (II) again.
Check the ABS indicator, the brake system indicator, and the VSA indicator for several seconds when the ignition switch is turned to ON (II).
Do the indicators come on then go off?

YES - If the VSA modulator-control unit was updated, troubleshooting is complete.

NO - Check for loose terminals in the VSA modulator-control unit 36P connector. If the symptom/indication is still present, replace the VSA modulator-control unit (see VSA MODULATOR-CONTROL UNIT REMOVAL AND INSTALLATION ).
