USB Harness (Without Navigation)

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

USB HARNESS CONNECTOR REFERENCE TABLE

Connector or Terminal	Ref	Cavities	Location	Connects to	Notes
Audio unit	13	14	Under right side of dash	-	-
USB adapter unit	12	14	Under right side of dash	-	-

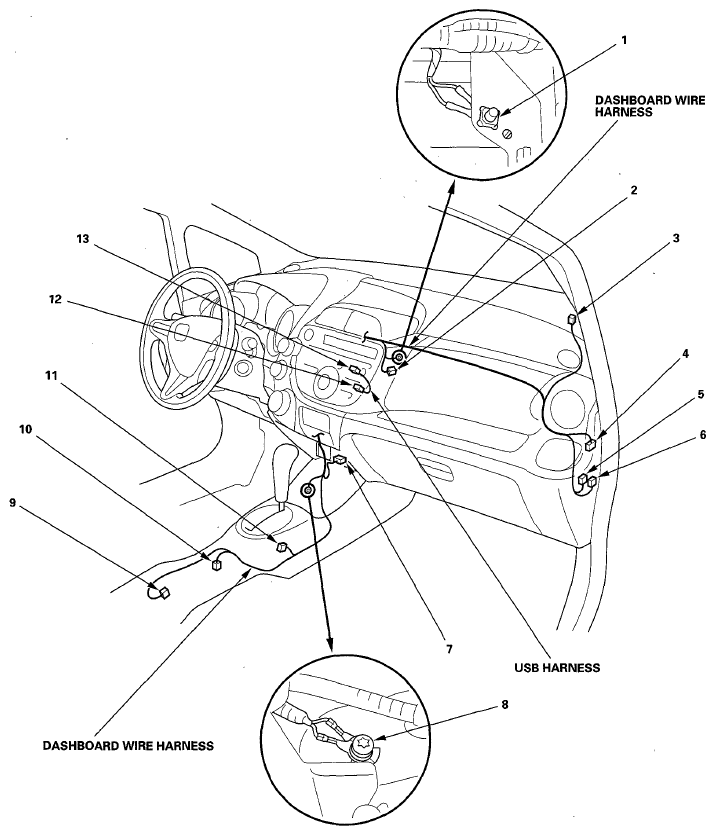

Fig 1: Identifying Dashboard Wire Harness Connectors (View Of Passenger's Side) (Without Navigation)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
