Right Engine Compartment Wire Harness (Engine compartment branch)
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
Right Engine Compartment Wire Harness (Engine compartment branch)

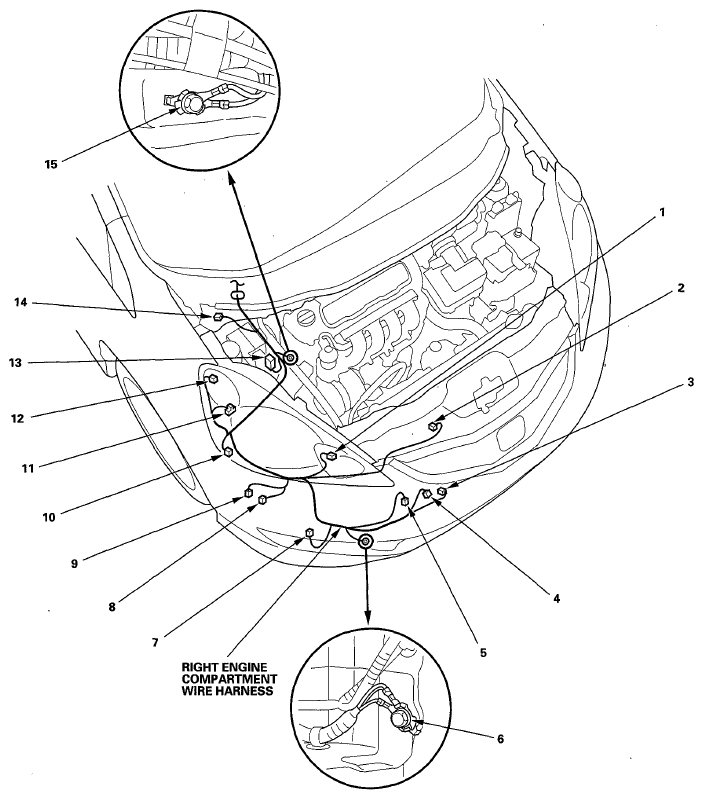

RIGHT ENGINE COMPARTMENT WIRE HARNESS CONNECTOR REFERENCE TABLE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| ABS modulator-control unit | 13 | 16 | Right side of engine compartment | - | With ABS |
| A/C compressor clutch | 4 | 3 | Right front of engine compartment | - | With A/C |
| A/C pressure sensor | 5 | 3 | Right front of engine compartment | - | With A/C |
| Engine coolant temperature (ETC) sensor 2 | 3 | 2 | Right front of engine compartment | - | - |
| Optional connector (for fog light) | 10 | 1 | Right front of engine compartment | - | - |
| Right fog light | 7 | 2 | Behind right side of front bumper | - | - |
| Right front impact sensor | 2 | 2 | Behind right side of front grille | - | - |
| Right front parking/side marker light | 1 | 2 | Behind right headlight | - | - |
| Right front turn signal light | 12 | 2 | Behind right headlight | - | - |
| Right front wheel speed sensor | 14 | 2 | Right side of engine compartment | - | - |
| Right headlight | 11 | 3 | Behind right headlight | - | - |
| VSA modulator-control unit | 13 | 22 | Right side of engine compartment | - | With VSA |
| Washer fluid level switch | 8 | 2 | Behind right side of front bumper | - | Canada models |
| Window washer motor | 9 | 2 | Behind right side of front bumper | - | - |
| G201 | 6 | - | Right front of engine compartment | Body ground, via right engine compartment wire harness | - |
| G202 | 15 | - | Right side of engine compartment | Body ground, via right engine compartment wire harness | - |
